Terminus and Tritanius

Cutterheads for fast knife changes, long tool life and clean surfaces

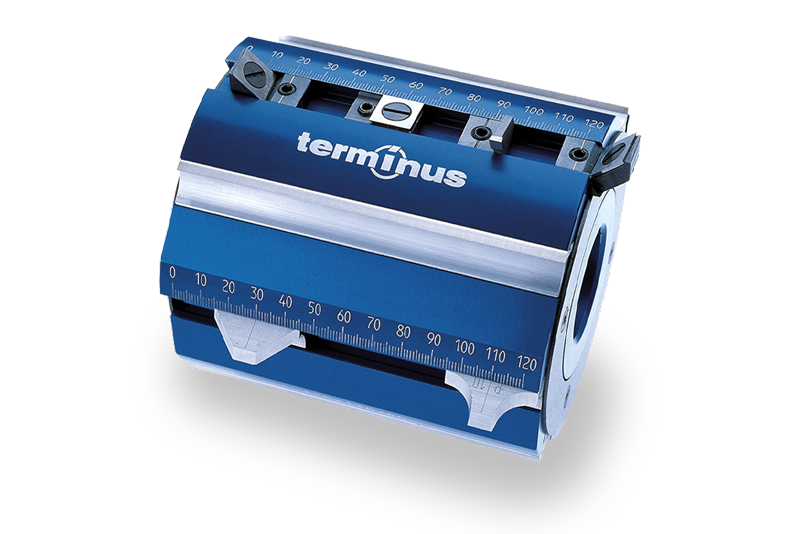

Blue Terminus cutterhead with measuring scale and reversible knives

Terminus and Tritanius Cutterheads

We stock both the original Terminus cutterheads and our cost-effective BARKE in-house brand Tritanius. You have the choice. Both products offer:

Advantages

  • Lightning-fast knife changes with optimal tool life and precision fit
  • Excellent knife quality thanks to Trimetall technology
  • Extremely clean, smooth surface finish – no additional sanding required
  • Various elements for edge processing (optional)
  • Significant noise and kickback reduction due to the closed design

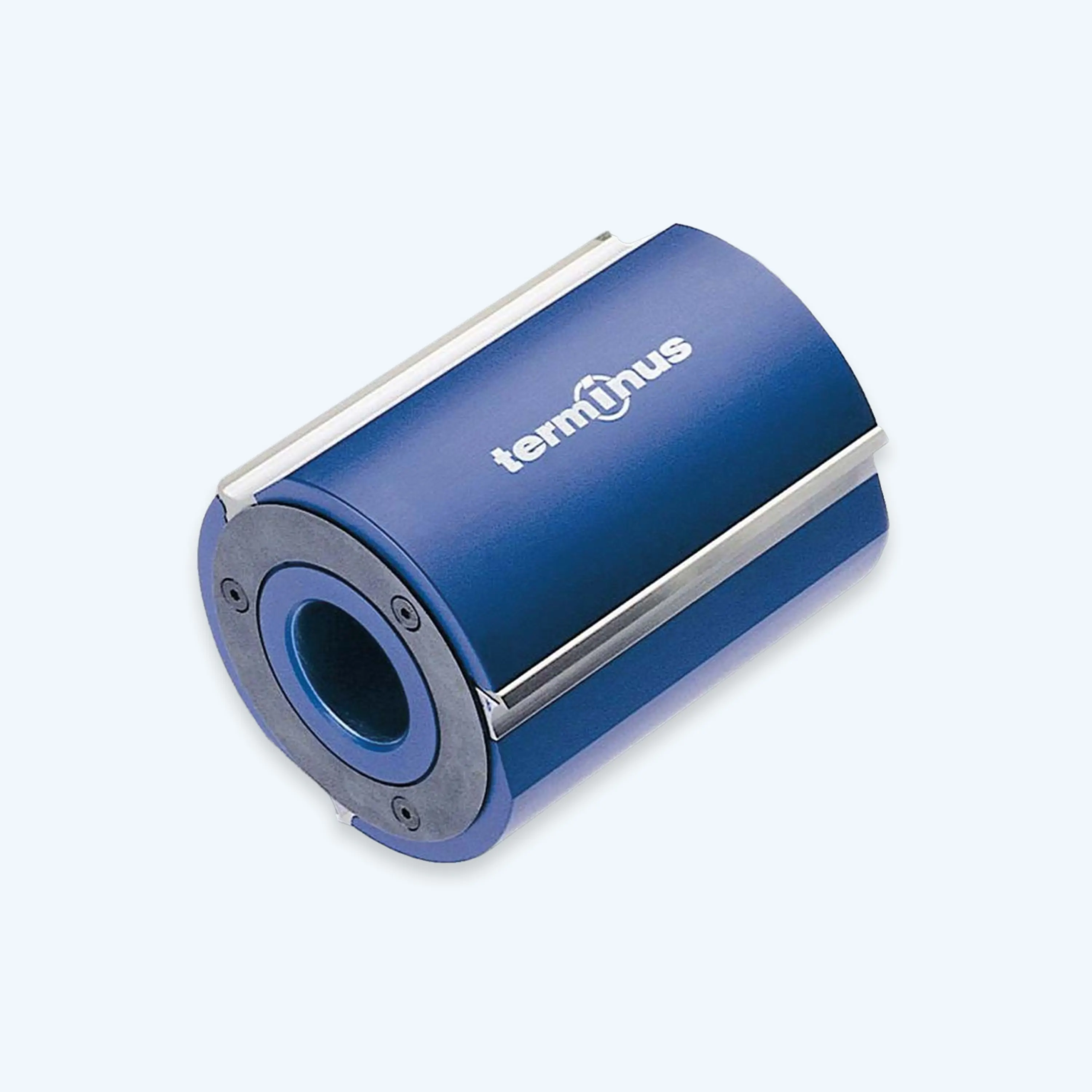

Terminus standard cutterhead 9000

Standard Cutterhead 9000

  • Cutterheads made of high-quality aluminum alloy with TERMINUS quick-change knife system
    with reversible knives (HSS or carbide)
  • also available in steel
  • up to Ø 250 mm, up to Z=16

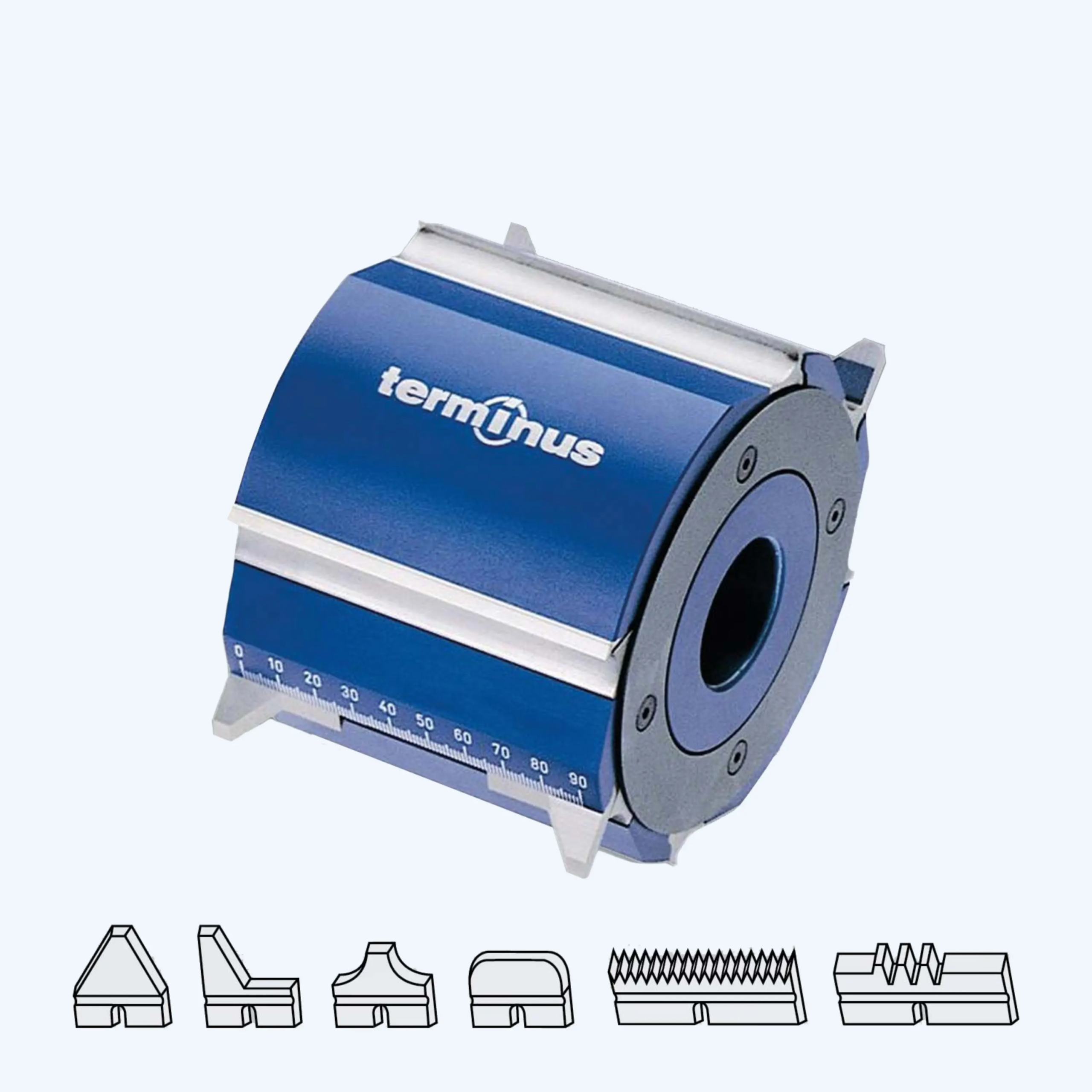

Terminus combination cutterhead 9100 with symbols of the possible profiles

Combination Cutterhead 9100

  • Universal cutterhead with TERMINUS quick-change knife system and all options of types 9000, 9100 and 9200
  • with reversible knives (HSS or carbide)

Options:

  • Knives with different dimensions and special profiles up to 230 mm
  • Carbide profile knives
  • Special tools

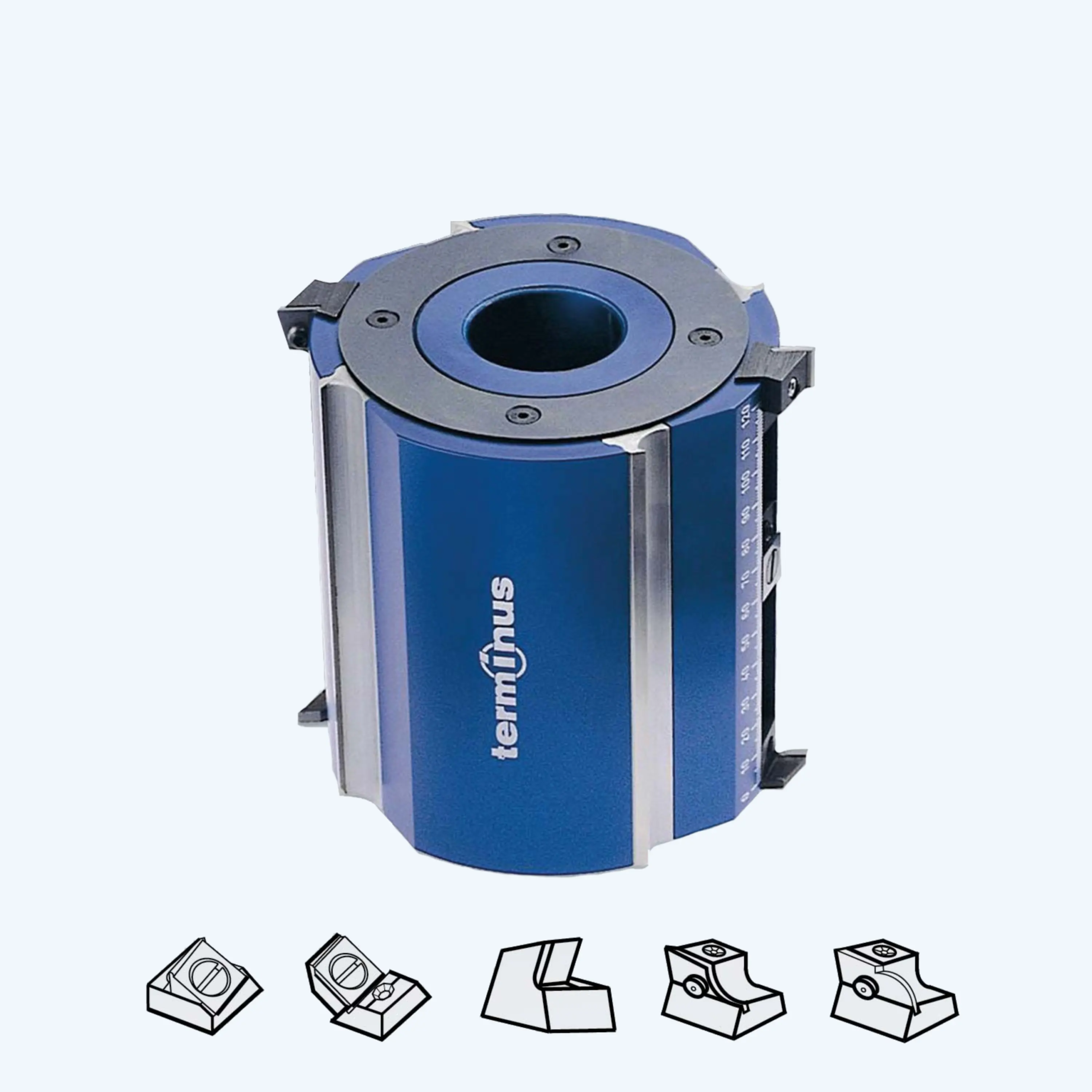

Terminus combination cutterhead 9200 with symbols of the knife shapes

Combination Cutterhead 9200

  • Combination cutterhead with TERMINUS quick-change knife system, combined with dovetail guide and 4 profile knives
  • with reversible knives (HSS or carbide)
  • with profile knives: bevel knives (inside/outside), concave knives R2 – R8, convex knives R6 – R8, grooving knife (4 – 6 mm wide)

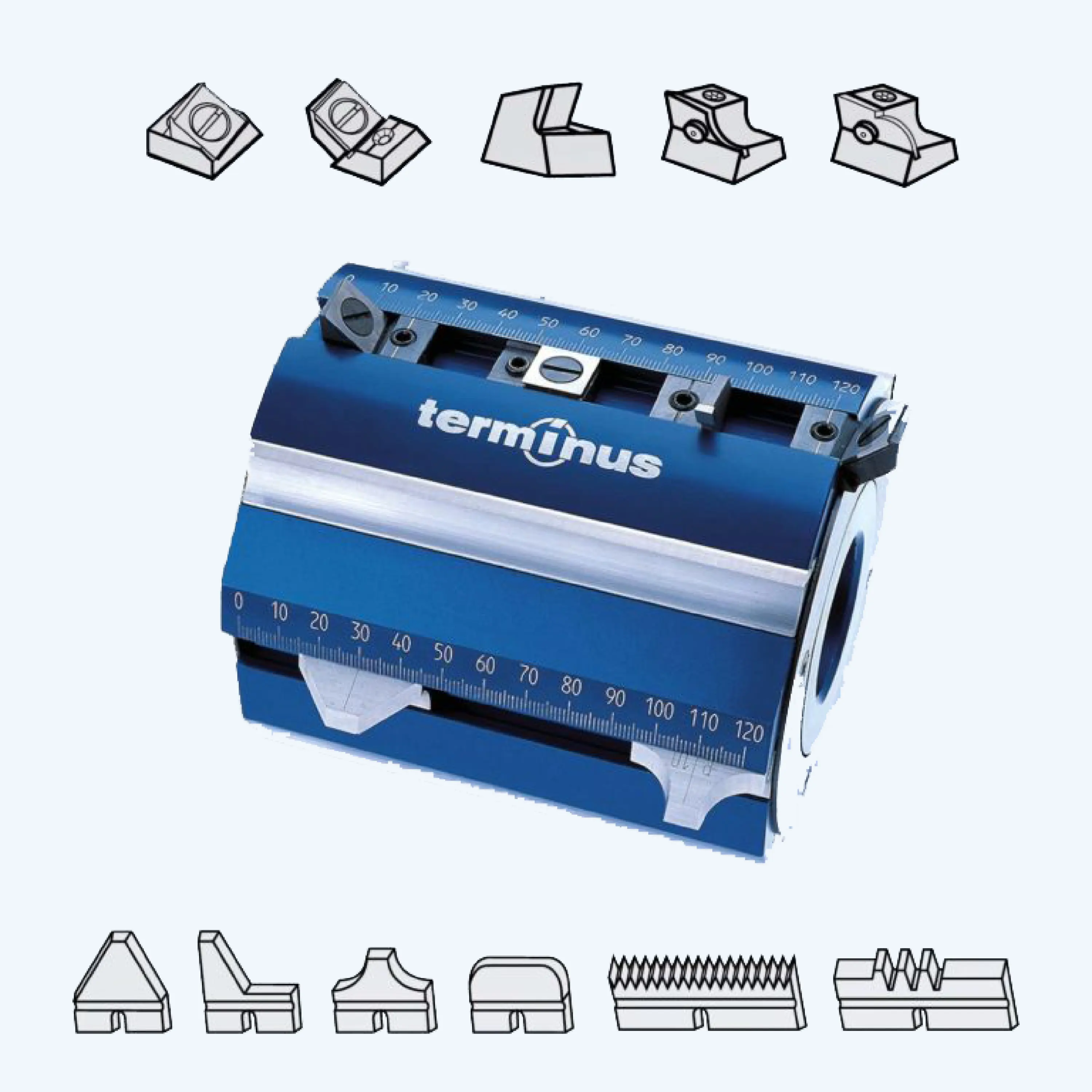

Terminus universal cutterhead 9300 with symbols of the knife and profile shapes

Universal Cutterhead 9300

  • Universal cutterhead with TERMINUS quick-change knife system and all options of types 9000, 9100 and 9200
  • with reversible knives (HSS or carbide)

Options:

  • Knives with different dimensions and special profiles up to 230 mm
  • Carbide profile knives
  • Special tools

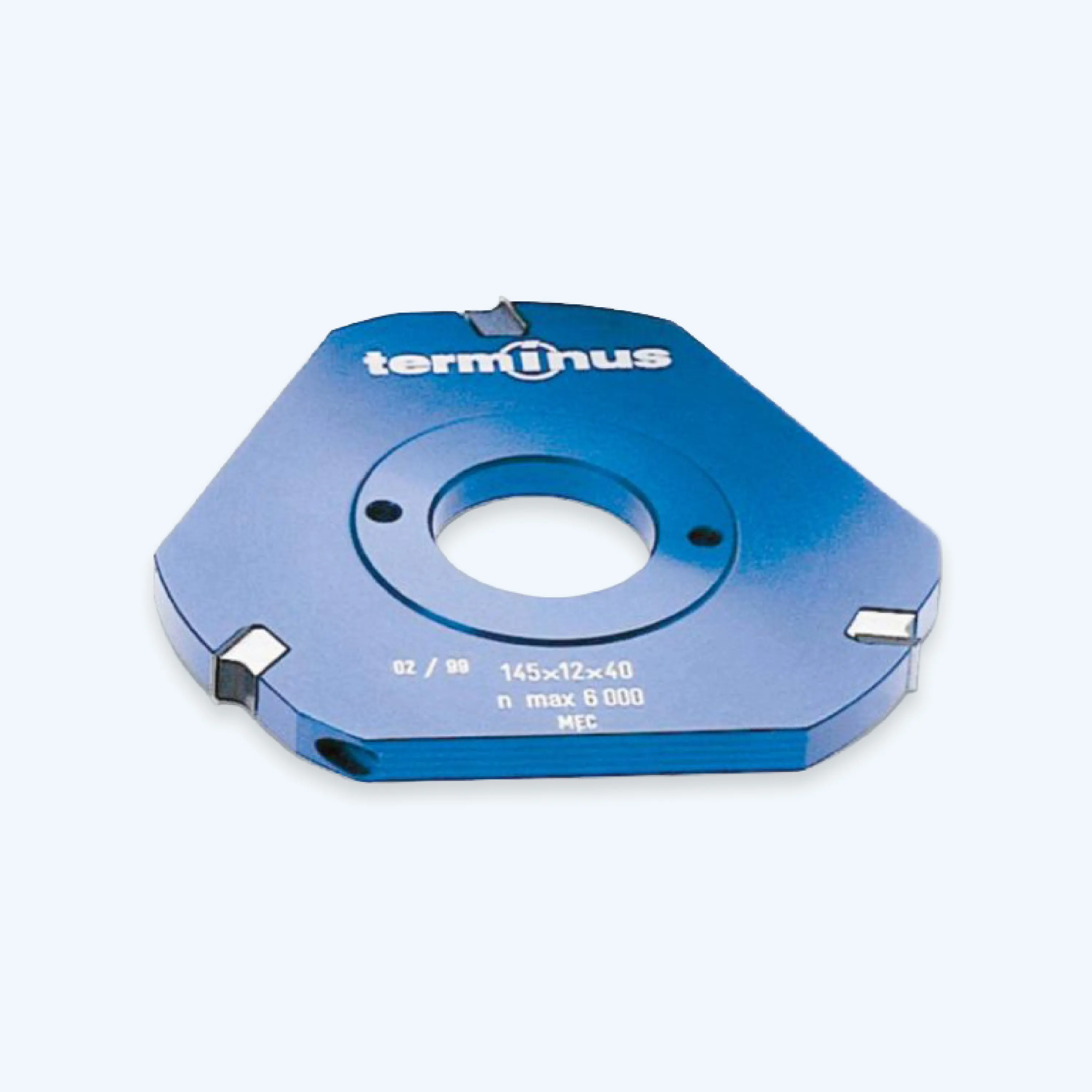

Terminus pre-jointing cutter 9400, blue disc with reversible knives

Reference Engraver 9400

TERMINUS reference engraver with carbide indexable inserts for milling a guide rebate.

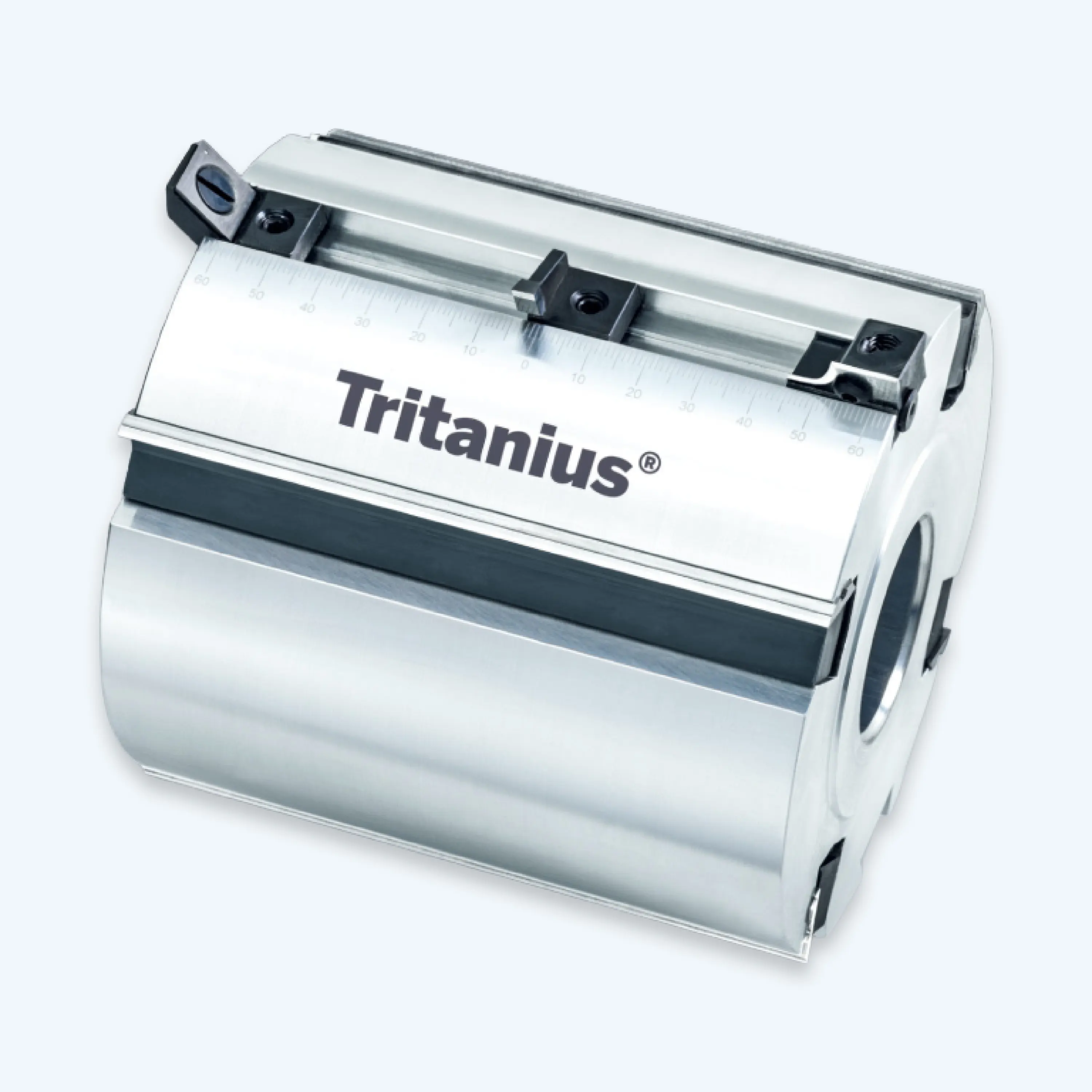

Tritanius combination cutterhead made of aluminium with inserted reversible knives

Tritanius Combination Cutterhead

Combination cutterhead by BARKE with click system; available with resharpenable reversible planer knives and optionally with bevel, convex, concave, grooving and profile knives.

Our cutterheads are available with the following knife systems:

Link to: BARKE-Wendehobelmesser
BARKE reversible planer knife: flat knife with two slotted holes
BARKE
Link to: TersoTri (Tersa) Hobelmesser
TersoTri reversible planer knife for the Tersa system, engraved TriHSS-M42
Tersa (Tersotri)
Link to: CentroLock Hobelmesser
CentroLock reversible planer knife engraved TriLock-Trimetall
Centrolock
Link to: CentoTri Hobelmesser
CentoTri reversible knife for CentroFix, CentroStar and QuickFix, profiled knife
Centrofix
Link to: Terminus Hobelmesser
Tritanius reversible planer knife for Terminus cutterheads, profiled knife in close-up
Terminus

Product Finder

Find the right cutterhead and reversible planer knife

Terminus® cutterheads (original Terminus)

Other dimensions on request.

Tritanius® cutterheads (BARKE alternative to Terminus)

Other dimensions on request.
